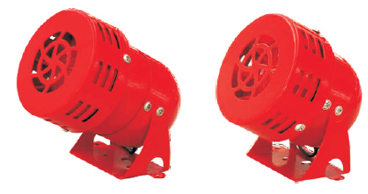

Mini Motor Siren

Product name : Mini Motor Siren

Item : MS-190

Details :


 Content

Moter Siren with the external diameter of 80/100mm which makes the output of 40W sound volume.
Suitable for warning information of small hoist, light transfer cars and the inside of small vessel.
Body standard color : RED
Material : STEEL & ABS
Insulation resistance : 100MΩ(at 500 VDC)
Dielectric strength : 500VAC, 50/60Hz in 1 minute
Protection class : IP44
 Technical Data

Model Voltage Current(A) Frequency(Hz) decibel Packing Size QTY Weight
MS-190 DC12V 6.00  50/60  114dB  44.5*23*48 cm 40pcs 16kg
DC24V 2.50  50/60   114dB  16kg
AC110V 0.90 50/60  114dB   22kg
AC220V 0.43 50/60   114dB   22kg

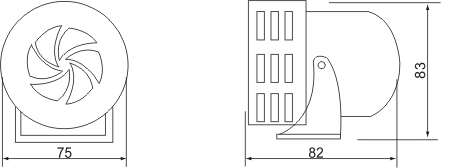

 Shape







 Features


   Special motor  High-quality motor, rotating speed of 10000 rev / sec.


   Duration  Sustainable working hours to 40 minutes.
