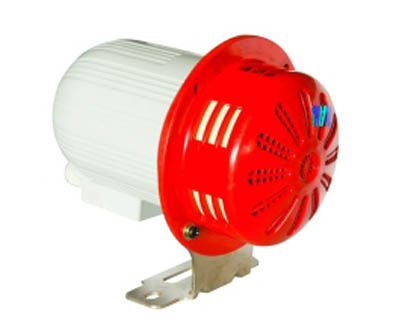

Motor Siren

Product name : Motor Siren

Item : MCL-280

Details :


 Content

Moter Siren with the external diameter of 80/100mm which makes the output of 40W sound volume.
Suitable for warning information of small hoist, light transfer cars and the inside of small vessel.
Body standard color : RED
Material : STEEL & ABS
Insulation resistance : 100MΩ(at 500 VDC)
Dielectric strength : 500VAC, 50/60Hz in 1 minute
Protection class : IP44
 Technical Data

Model Voltage Current(A) Frequency(Hz) decibel Packing Size QTY Weight
MCL-280 DC12 10.6 1150 107 48*28*33 cm 40pcs 16kg
DC24 7.5 1400 112 16kg
AC110 1.0 1100 109 22kg
AC230 0.70 1400 112 22kg

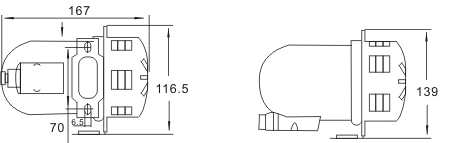

 Shape






 Features


   Special motor  High-quality motor, rotating speed of 10000 rev / sec.


   Duration  Sustainable working hours to 40 minutes.
