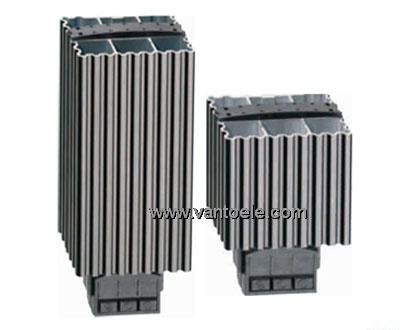

Semiconductor Heater
Product name : Semiconductor Heater
Item : HG 140
Details :
|
- Pressure clamp connectors
- Dynamic heating up
- Wide voltage range
- Temperature limiting
- Energy saving
- Clip fixing
- Quick installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The pressure clamp connectors save time and simplify installation.
|
Technical Data
Operating voltage
|
120-240V AC/DC* (min. 110V, max. 265V)
|
Heating element
|
PTC resistor, self regulating and temperature limiting
|
Heater body
|
extruded aluminium profile, anodised
|
Connection
|
3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm²
|
Connection casing
|
plastic according to UL94 V-0, black
|
Mounting
|
clip for 35mm DIN rail, EN 50022
|
Fitting position
|
vertical
|
Operating/Storage temperature
|
-45 to +70 °C (-49 to +158 °F)
|
Protection type/Protection class
|
IP20 / I (earthed)
|
Accessoires
|
screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces)
|
*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
|
Part No.
|
Power*
|
Max. current**
|

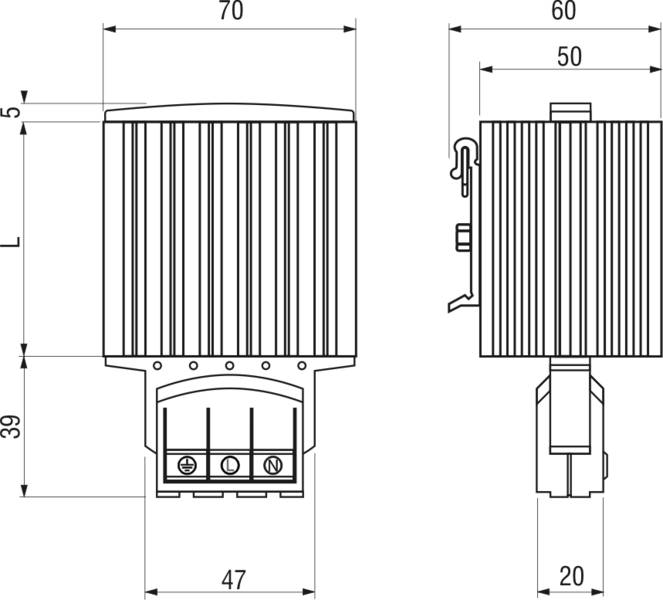

Length
|
Weight
|
14000.0-00
|
15W
|
1.5A
|
2.6"/65mm
|
0.3 kg
|
14001.0-00
|
30W
|
3.0A
|
2.6"/65mm
|
0.3 kg
|
14003.0-00
|
45W
|
3.5A
|
2.6"/65mm
|
0.3 kg
|
14005.0-00
|
60W
|
2.5A
|
5.5"/140mm
|
0.5 kg
|
14006.0-00
|
75W
|
4.0A
|
5.5"/140mm
|
0.5 kg
|
14007.0-00
|
100W
|
4.5A
|
5.5"/140mm
|
0.5 kg
|
14008.0-00
|
150W
|
9.0A
|
8.7"/220mm
|
0.8 kg
|
*at 68°F (20°C) ambient temperature
**Inrush current
|
