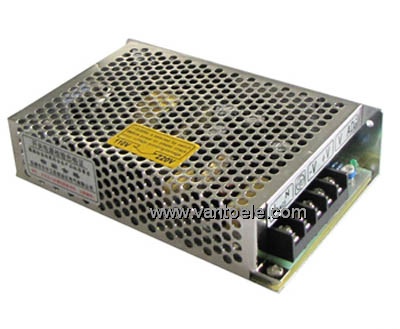

Switching Power Supply
Product name : Switching Power Supply
Item : Single output S-60W
Details :
Product Description:
Model / Specification
|
S-60-5
|
S-60-12
|
S-60-15
|
S-60-24
|
DC output voltage
|
5V
|
12V
|
15V
|
24V
|
Output voltage error (Note2)
|
±2%
|
±1%
|
±1%
|
±1%
|
Rated output current
|
10A
|
4.2A
|
3.4A
|
2.1A
|
Output current rage
|
0-10A
|
0-4.2A
|
0-3.4A
|
0-2.1A
|
Wave and noise(Note3)
|
75mVp-p
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
Inlet stability(Note4)
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
Load stability(Note5)
|
±1%
|
±0.5%
|
±0.5%
|
±0.5%
|
DC output power
|
50W
|
50.4W
|
50.4W
|
50.4W
|
Efficiency
|
71%
|
78%
|
78%
|
82%
|
Adjustable range for DC voltage
|
±10,-5%
|
±10%
|
±10%
|
±10%
|
AC input voltage range
|
85~132VAC/170~264VACselected by switch
|
Input current
|
2A/115V 1A/230V
|
AC impulse current
|
Cold-start current 30A/115V 60A/230V
|
Leakage current
|
<1mA/240VAC
|
Overload protection
|
105%~150%Type:TOLDBACK Reset: auto recovery
|
Over-voltage protection
|
……
|
High-temperature protection
|
……
|
Temperature coefficient
|
±0.03%℃(0~50℃)
|
Setup rise hold up time
|
200ms,100ms,30ms
|
Vibration
|
10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
|
Withstand voltage
|
Input and output interval:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC
|
Isolation resistance
|
Input and output interval,Input and enclosure,Output and enclosure:0500VAC/100M Ohms
|
Working temperature and humidity
|
-10℃~+60℃,20%~90%RH
|
Store temperature and humidity
|
-20℃~+85℃,10%~95RH
|
Overall dimension
|
159*97*38mm
|
Weight
|
0.56Kgs
|
Safety standards
|
UL1012 TUV EN60950(IEC950,UL1950)Approved
|
EMC standards
|
CLSPR22(EN55022),IEC801-2、3、4,IEC555-2 Verification
|
Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2、3、11must be knocked down.
|
