Electronic Relay

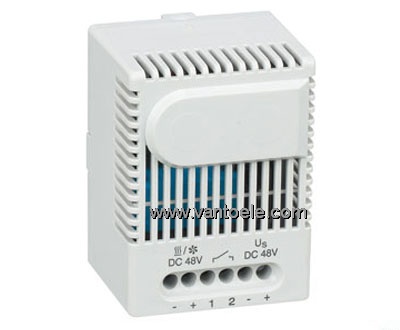

Product name : Electronic Relay
Item : SM 010
Details :
|
|
- High DC switching capacity
- Variety of applications
- Compact design
- Simple connection
- Clip fixing
Electronic relay for switching DC appliances with high switching capacity. A separate conventional switch contact is used as controller (e.g. temperature regulator, humidity regulator). The electronic relay is available in 24VDC and 48VDC versions.
|
Technical Data
|
Contact type
|
contact maker (Relay/MOSFET)
|
|
Contact resistance
|
< 10mOhm
|
|
Service life
|
> 100 000 cycles
|
|
EMC
|
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
|
|
Connection
|
6-pole terminal, clamping torque 0.5Nm max., rigid wire 2.5mm²
|
|
Mounting
|
clip for 35mm DIN rail, EN50022
|
|
Casing
|
plastic according to UL94 V-0, light grey
|
|
Dimensions/weight
|
67 x 50 x 46mm approx. 85g
|
|
Fitting position
|
variable
|
|
Operating/Storage temperature
|
-45 to +70°C (-49 to +158°F)
|
|
Protection type
|
IP20
|
|
Art. No.
|
Operating voltage
|
Max. switching capacity
|
|
01001.0-00
|
24VDC (20-28VDC)
|
28VDC 16A
|
|
01000.0-00
|
48VDC (38-56VDC)
|
56VDC 16A
|

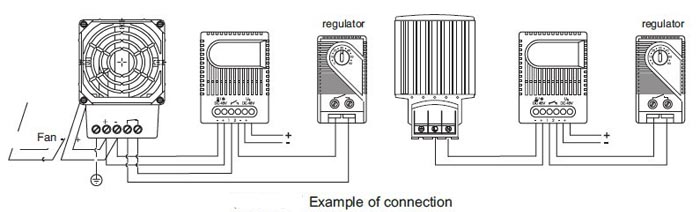

Example of Connection
Dimensioned Drawing
|
