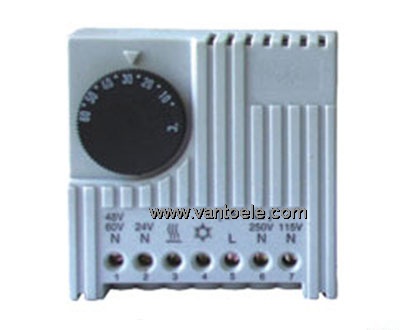

Room Thermostat
Product name : Room Thermostat
Item : SG-8000
Details :
|
|
- Especially used for controlling fan filter, heater and heat exchanger, also could be monitoring the electric cabinet inner temperature when working as signal arouser.
|
Technical Data
- Bimetal sensor as heat sensitivity set to feedback of heat.
- Contact point scheme:single switchover contact point as instant switch component
- Allowed load of contact point
- KI.5-3 (Heating)
- AC10(4)¹ A
- DC=30W
- KI.5-4 (Cooling)
- AC 5(4)¹ A
- DC=30W
- (¹ )=sensitivity load at cosФ=0.6
- Adjusting range: +5℃ to +60℃
- Size: 71x71x33.5mm Weight: appr. 105g
- Switch discrepancy: 1K±0.8K
- Voltage scope is wide, any type could be used from 24V to 230V
- Time-saving connection, terminal block could be installed with screw fro outside.
- Easy installation, could be installed to 35mm din rail vertically or horizontally. according to EN50 022, it could be clipped to NS/35-ES cabinet profile with its accesory adapter
|
