Switching Power Supply

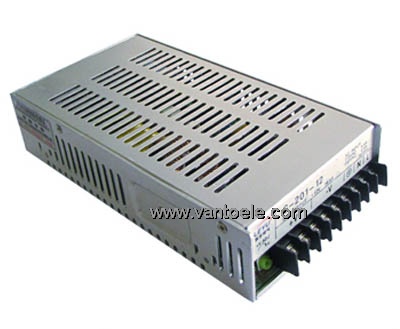

Product name : Switching Power Supply

Item : Single output S-201W

Details :
Product Description:
Model / Specification
S-201-5
S-201-7.5
S-201-12
S-201-13.5
S-201-15
S-201-24
S-201-27
S-201-48
DC output voltage
5V
7.5V
12V
13.5V
15V
24V
27V
48V
Output voltage error (Note2)
±2%
±2%
±1%
±1%
±1%
±1%
±1%
±1%
Rated output current
40A
26.5A
16.5A
14.7A
13A
8.3A
7.4A
4.2A
Output current rage
0-40A
0-26.5A
0-16.5A
0-14.7A
0-13A
0-8.3A
0-7.4A
0-4.2A
Wave and noise(Note3)
150mVp-p
150mVp-p
180mV
180mV
180mV
180mV
240mV
240mV
Inlet stability(Note4)
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Load stability(Note5)
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
DC output power
200W
198.75W
198W
198.45W
198W
199.2W
199.8W
201.6W
Efficiency
74%
79%
80%
80%
81%
83%
83%
84%
Adjustable range for DC voltage
4.5-5.6V
6-9V
10-13.2V
12-15V
13.5-18V
20-26.4V
26-32V
41-56V
AC input voltage range
90~132VAC/186~264VAC SELECTED BY JUMPER OR SWTCH 47~63Hz;254~370VDC
Input current
4.5A/115V 2.5A/230V
AC impulse current
25A/115V 50A/230V
Leakage current
<3.5mA/240VAC
Overload proctection
105%~150%. Type:PULSING HICCUP SHUTDOWN Reset: auto recovery
Over-voltage protection
5.75-6.75V
9.4-10.9V
13.8-16.2V
15.5-18.2V
18-21V
27.6-32.4V
33.7-39.2V
57.6-67.2V
High-temperature protection
RTH3>=90℃ OUTPUT SHUTDOWN
Temperature coefficient
±0.03%℃(0~50℃)
Setup rise hold up time
200ms,100ms,20ms
Vibration
10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage
Input and output interval:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC
Isolation resistance
Input and output interval,Input and enclosure,Output and enclosure:500VAC/100M Ohms
Working temperature and humidity
-10℃~+50℃,20%~90%RH
Store temperature and humidity
-20℃~+85℃,10%~95%RH
Overall dimension
215*115*50mm
Weight
0.9Kgs
Safety standards
Design refer to UL 1950
EMC standards
Design refer to FCC Part 15J Conduction Class A
Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2、3、11must be knocked down.
