Switching Power Supply

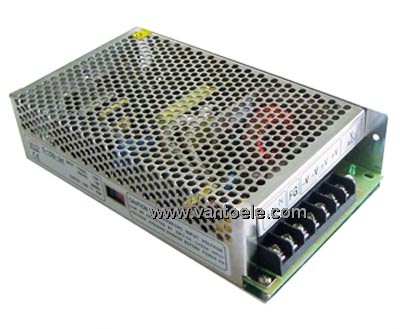

Product name : Switching Power Supply
Item : Single output S-150W
Details :
Product Description:
|
Model / Specification
|
S-150-5
|
S-150-7.5
|
S-150-9
|
S-150-12
|
S-150-13.5
|
S-150-15
|
S-150-24
|
S-150-27
|
S-150-48
|
|
DC output voltage
|
5V
|
7.5V
|
9V
|
12V
|
13.5V
|
15V
|
24V
|
27V
|
48V
|
|
Output voltage error (Note2)
|
±2%
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
|
Rated output current
|
30A
|
20A
|
16.7A
|
12.5A
|
11.2A
|
10A
|
6.5A
|
5.6A
|
3.2A
|
|
Output current rage
|
0-30A
|
0-20A
|
0-16.7A
|
0-12.5A
|
0-11.2A
|
0-10A
|
0-6.5A
|
0-5.6A
|
0-3.2A
|
|
Wave and noise(Note3)
|
150mVp-p
|
150mVp-p
|
180mV
|
180mV
|
180mV
|
180mV
|
240mV
|
240mV
|
240mV
|
|
Inlet stability(Note4)
|
±0.5%
|
±0.5%
|
±0.3%
|
±0.3%
|
±0.3%
|
±0.3%
|
±0.2%
|
±0.2%
|
±0.2%
|
|
Load stability(Note5)
|
±0.5%
|
±0.5%
|
±0.3%
|
±0.3%
|
±0.3%
|
±0.3%
|
±0.2%
|
±0.2%
|
±0.2%
|
|
DC output power
|
150W
|
150W
|
150.3W
|
150W
|
151.2W
|
150W
|
156W
|
151.2W
|
153.6W
|
|
Efficiency
|
78%
|
80%
|
80%
|
82%
|
83%
|
84%
|
85%
|
86%
|
87%
|
|
Adjustable range for DC voltage
|
4.5-5.5V
|
6-8.3V
|
8-10.4V
|
10.6-13.2V
|
12-15V
|
13.5-16.5V
|
21-28V
|
24-30V
|
43-53V
|
|
AC input voltage range
|
85～132VAC/176～264VAC SELECTED BY JUMPER OR SWTCH 47～63Hz;255～370VDC
|
|
Input current
|
3.2A/115V 1.6A/230V
|
|
AC impulse current
|
Cold-start current 35A/115V 60A/230V
|
|
Leakage current
|
<3.5mA/240VAC
|
|
Overload protection
|
105～150 Type：PULSING HICCUP SHUTDOWN Reset:auto recovery
|
|
Over-voltage protection
|
115%～135%
|
|
High-temperature protection
|
……
|
|
Temperature coefficient
|
±0.03%℃(0～50℃)
|
|
Setup rise hold up time
|
100ms,50ms,20ms
|
|
Vibration
|
10～500Hz,2G 10min./1cycle,Period for 60min,Each axes
|
|
Withstand voltage
|
Input and output interval：3KVAC，Input and enclosure：1.5KVAC，Output and enclosure：0.5KVAC
|
|
Isolation resistance
|
Input and output interval，Input and enclosure，Output and enclosure：500VAC/100M Ohms
|
|
Working temperature and humidity
|
-10℃～+60℃，20%～90%RH
|
|
Store temperature and humidity
|
-20℃～+85℃,10%～95RH
|
|
Overall dimension
|
199*110*50mm
|
|
Weight
|
0.8Kgs
|
|
Safety standards
|
Meet UL1012,TUV EN60950
|
|
EMC standards
|
Meet CLSPR22(EN55022), IEC801-2,3,4,IEC555-2 Verification
|
|
Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2、3、11must be knocked down.
|
