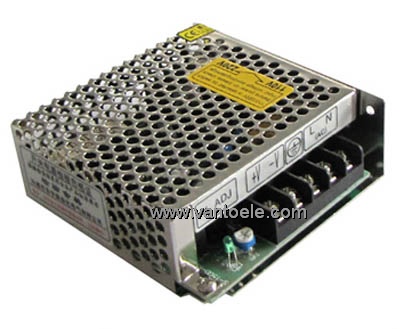

Switching Power Supply
Product name : Switching Power Supply
Item : Single output S-15W
Details :
Product Description:
Model /Specification
|
S-15-5
|
S-15-12
|
S-15-24
|
DC output voltage
|
5V
|
12V
|
24V
|
Output voltage error (Note2)
|
±2%
|
±1%
|
±1%
|
Rated output current
|
3A
|
1.3A
|
0.7A
|
Output current rage
|
0-3A
|
0-1.3A
|
0-0.7A
|
Wave and noise(Note3)
|
50mVp-p
|
50mVp-p
|
100mVp-p
|
Inlet stability(Note4)
|
±0.5%
|
±0.5%
|
±0.5%
|
Load stability(Note5)
|
±1%
|
±0.5%
|
±0.5%
|
DC output power
|
15W
|
15.6W
|
16.8W
|
Efficiency
|
65%
|
68%
|
72%
|
Adjustable range for DC voltage
|
±10,-5%
|
±10%
|
±10%
|
AC input voltage range
|
85~132VAC/170~264VACselected by switch
|
Input current
|
0.5A/115V 0.25A/230V
|
AC impulse current
|
Cold-start current 15A/115V 30A/230V
|
Leakage current
|
<0.5mA/240VAC
|
Overload protection
|
105%~150%Type: current limiting ;Reset: auto recovery
|
Over-voltage protection
|
……
|
High-temperature protection
|
……
|
Temperature coefficient
|
±0.02%℃(0~50℃)
|
Setup rise hold up time
|
200ms,100ms,30ms
|
Vibration
|
10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
|
Withstand voltage
|
Input and output interval:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC
|
Isolation resistance
|
Input and output interval,Input and enclosure,Output and enclosure:0500VAC/100M Ohms
|
Working temperature and humidity
|
-10℃~+60℃,20%~90%RH
|
Store temperature and humidity
|
-20℃~+85℃,10%~95RH
|
Overall dimension
|
99*97*35mm
|
Weight
|
0.3Kgs
|
Safety standards
|
Meet UL1012
|
EMC standards
|
……
|
Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test:The load is from 0% to 100%,others 60%.
6.C2、3、11must be knocked down.
|
